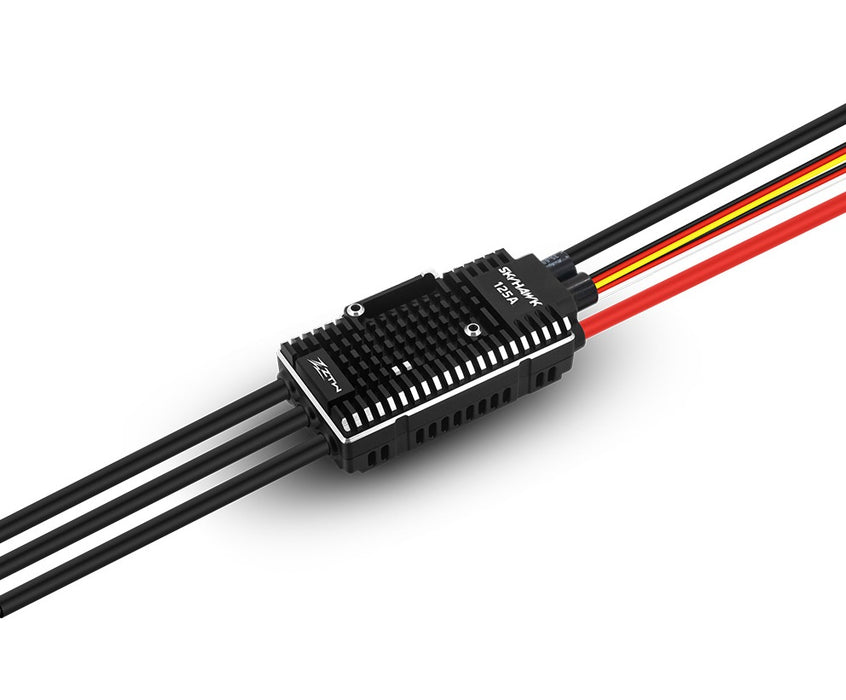

ZTW Skyhawk G2 Series 125A Brushless 32-Bit ESC

ZTW Skyhawk G2 Series 125A Brushless 32-Bit ESC

by ZTW
$99.99 - $99.99
$99.99
$99.99 - $99.99
$99.99
Availability:
in stock, ready to be shipped
Meet ZTW's newest premium-level speed controller line: Skyhawk Series. Combining competition-grade performance with ZTW's legendary quality and reliability, these ESCs are sure to be a win in your favorite model.

ZTW speed controllers are one of the most widely used and trusted speed controller brands available on the market today. They are sold under many different brand names, but we choose to purchase direct from the manufacturer without rebranding so that we can pass the savings on to you. ZTW controllers represent a new generation of brushless ESCs using advanced microprocessor technology. They are designed and manufactured with high quality components which provide exceptional reliability, low internal resistance, and a smooth, linear throttle response.

Skyhawk Features:

  • New generation high-performance 32-bit microprocessor running up to 170mHz provides:
    • Faster throttle response
    • Smoother and more accurate startup
    • Improved throttle linearity
    • Better motor compatibility, especially high RPM motors
    • Lower heat generation
    • Higher efficiency
  • High power, adjustable SBEC up to 8.4V output
  • Aluminum finned heatsink for better heat dissipation
  • Utilizes new MOSFET technology for low heat and high reliability
  • Power on self-test function automatically checks the circuit, motor, throttle, and voltage when the ESC is powered on.
  • Data backhaul/telemetry function supports transmitting data like current, voltage, temperature, RPM, throttle, and more to an LCD program card or mobile phone (using ZTW app) in real time. Requires optional bluetooth module.
  • Multiple protections: start-up, input voltage abnormal, over-current, over-heat, low-voltage cutoff, signal loss, overload.
  • Programming via phone app (requires optional bluetooth module), LCD program card, or transmitter.
  • Pre-soldered with 4.0mm bullet plugs and XT60 battery plug.

Specifications:

  • Continuous current: 125A
  • Burst Current: 140A
  • Cell count: 3-8s Lipo
  • Weight: 171g
  • SBEC output: 6.0V / 7.4V / 8.4V adjustable @ 10A
  • CPU frequency: up to 170Mhz
  • Dimensions: 87x40x32mm
  • Connector type: 4.0mm pre-soldered /XT60
  • Programmable via transmitter, G2 program card, Android/iOS app w/ optional bluetooth module

Programmable functions (default setting in bold):

  • Brake type: Normal / Reverse
  • Brake force: 0% / 0-100%
  • Timing: 15 degrees / 0-30 degrees
  • Motor rotiation: CW / CCW
  • SR function: On / Off
  • Battery cells: Auto / 3s, 4s, 6s / 3s, 4s, 6s, 8s / 6s, 8s, 10s 14s
  • Low voltage cut-off type: Reduce power / cut off power
  • SBEC (if equipped): 6.0V / 7.4V / 8.4V
  • Acceleration: 1 / 2 / 3 / 4
  • Start-up power: low / middle / high
  • Flight mode: fixed wing / helicopter
  • Governor parameter P: 4 / 1-10
  • Governor parameter I: 3 / 1-10
  • Telemetry: Real time data / SBUS

Click here to download the programming manual
