Hitec D89MW 32-Bit Wide Voltage Metal Gear Servo
Sold out
Original price
$0
Original price
$69.99
-
Original price
$69.99
Original price
Current price
$69.99
$69.99
-
$69.99
Current price
$69.99
Availability:
Out of stock
Thanks for signing up for restock notifications!
There was an error signing up for restock notifications. Please try again.
Notify me when back in stock

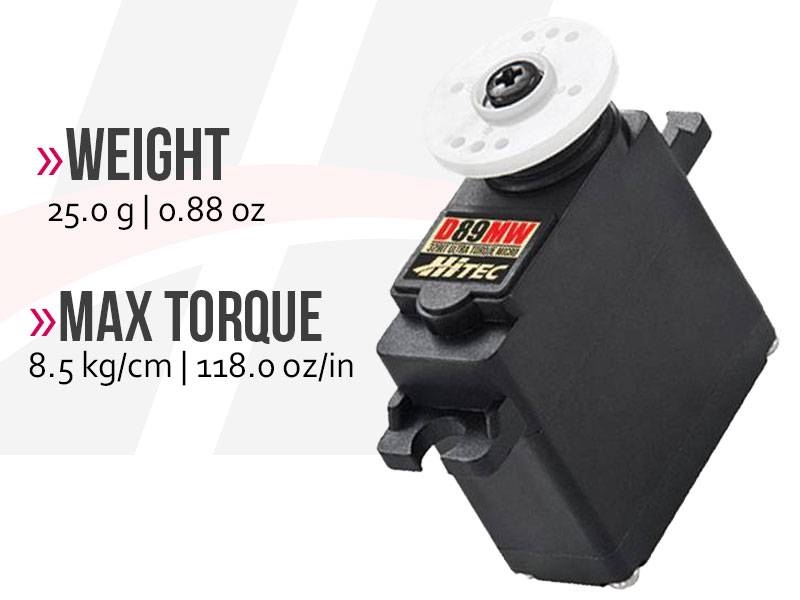

With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this mini servo a standout in its class.
Highlights of the D-Series
D89MW Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 7.4V |
| Speed (Second @ 60°) | 0.17 ~ 0.11 |
| Maximum Torque Range oz. / in. | 74 ~ 118 |
| Maximum Torque Range kg. / cm. | 5.3 ~ 8.5 |
| Current Draw at Idle | 30 mA |
| No Load Operating Current Draw | 300 mA |
| Stall Current Draw | 2,900 mA |
| Dead Band Width | N / A |
| Physical Specifications | |
| Dimensions (Inches) | 1.14 x 0.51 x 1.18 |
| Dimensions (Metric) | 29.0 x 13.0 x 30.0 |
| Weight (Ounces) | 0.88 |
| Weight (Gram) | 25.0 |
| Circuit Type | 32bit Programmable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | 5 Metal Gears |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | 25 / 6 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | N / A |
| Radio Control Applications | |
| Parkflyer | < 50 oz. |
| Sport Plane | 42 - 50 oz. |
| Sailplane | < 2 meters and up |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | 1/16th |
| Monster Truck | N / A |
| Buggies | 1/16th |
| Truggies | N / A |
| Short Course / Truck | 1/16th |
| Crawlers | N / A |
| Sail Boat | N / A |
| Power Boat | 1/16th |
