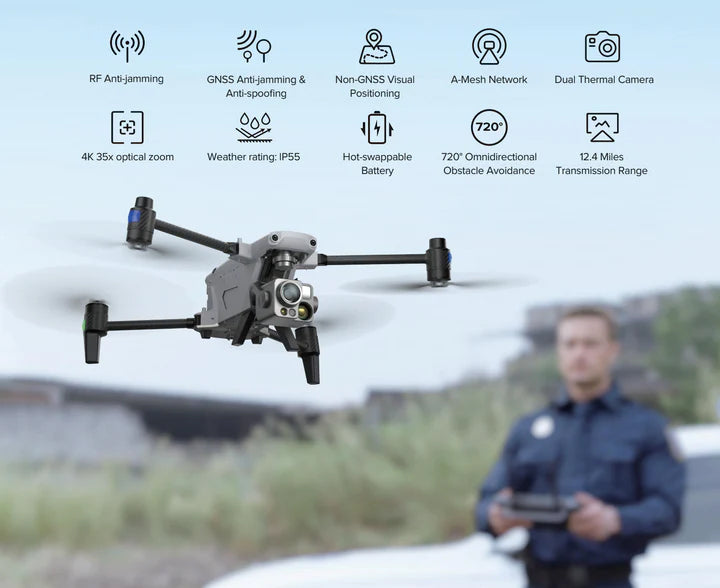

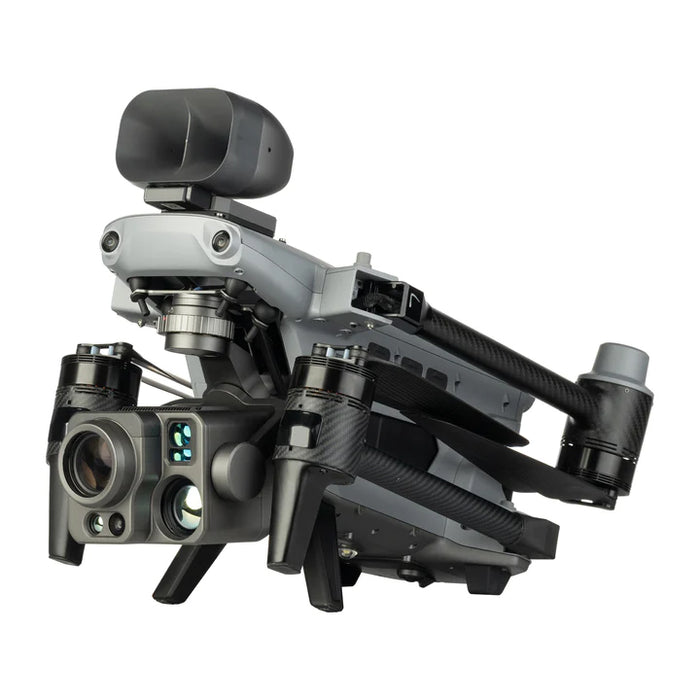

Autel Robotics Alpha Bundle
Discover Limitless Range:
- 12.4 Mile (20 km) Transmission Range: Extend your reach and explore uncharted horizons with confidence.
Extended Flight Time:
- 45 min Max. Flight Time: Maximize your flight sessions and capture every moment with an extended flight duration.
Weatherproof Design:
- IP55 Weather Rating: Defy the elements with a drone built to withstand a variety of weather conditions, ensuring you're always ready for action.
Capture Breathtaking Imagery:
-
50MP Wide Camera: Immerse yourself in the world of high-resolution aerial photography, delivering stunning wide-angle shots.
-
4K 25x Zoom Camera: Get up close and personal with your subjects, capturing every detail with this potent zoom capability.
-
640 x 512 Thermal Resolution: Uncover hidden details even in low-light conditions with thermal imaging technology.
Safety:
- 720 Omnidirectional Obstacle Avoidance
- RF Anti Jamming
-
GNSS Anti Jamming & Anti Spoofing
Autel Robotics Alpha Specs
|
Aircraft |
|
|
Weight （Battery and gimbal included) |
6100g |
|
Max. Payload |
3000g |
|
Dimensions |
1185*942*262mm (unfolded, incl. propellers) |
|
Diagonal Wheelbase |
810mm |
|
Max Flight Time (windless) |
40mins |
|
Max Hovering Time (windless) |
38mins |
|
Max Horizontal Speed (windless near sea level) |
24m/s |
|
Max Wind Resistance |
15m/s |
|
Hovering Accuracy |
Vertically: |
|
IP Rating |
IP55 |
|
Operating Temperature |
-20℃ to +50℃ |
|
GNSS |
GPS+GLONASS+BeiDou+Galileo |
|

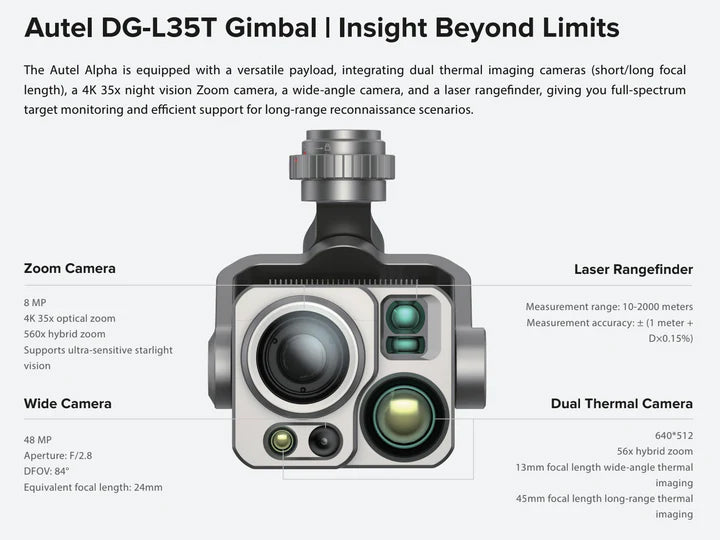

DG-L35T |
|
|
Autel Alpha Wide Camera |
|
|
Sensor |
1/2 CMOS, Effective pixels: 48M |
|
Lens |
DFOV: 84° |
|
ISO Range |
Photo: ISO100~ISO6400 |
|
Autel Alpha Zoom Camera |
|
|
Sensor |
1/1.8" CMOS |
|
Lens |
FOV: 66.7-34.6° |
|
Zoom Range |
Optical Zoom: 1~35 times |
|
ISO Range |
Photo: ISO100~ISO6400 |
|
Photo |
Format: 8bit JPG，12bit DNG |
|
Video |
Format: MP4/MOV |
|
Autel Alpha Thermal Camera (Wide) |
|
|
Sensor |
Uncooled VOx Microbolometer |
|
Lens |
FOV：42° |
|
Resolution |
640*512 P25 |
|
Temperature Measurement Range |
-20℃ to +150℃，0℃ to +550℃ |
|
Temperature Measurement Accuracy |
3℃ or ±3% of reading (using the larger value) |
|
Autel Alpha Thermal Camera (Tele) |
|
|
Sensor |
Uncooled VOx Microbolometer |
|
Lens |
FOV：12.3° |
|
Zoom Range |
Wide Digital Zoom: 1~3.5 times |
|
Resolution |
640*512 P25 |
|
Temperature Measurement Range |
-20℃ to +150℃，0℃ to +550℃ |
|
Temperature Measurement Accuracy |
3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃) |
|
Autel Alpha Laser Rangefinder |
|
|
Measuring Range |
10-2000m |
|
Measurement Accuracy |
± (1m + D×0.15%) |
